WGA、WGC、WGL、WGT、WGX - 圆型密封接线盒
單位:±3mm
|

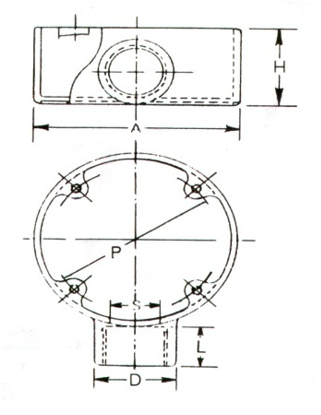

尺寸 Dimensions |
WG 1/2 |
WG 3/4 |
WG 1 |
WG 1 1/4 |
WG 1 1/2 |
WG 2 |
||
|
A |
89 |
89 |
100 |
114 |
114 |
140 |
||
|
P |
73 |
73 |
84 |
96 |
96 |
122 |
||
|
H |
41 |
41 |
45 |
56 |
71 |
86 |
||
|
L |
18 |
20 |
20 |
25 |
25 |
25 |
||
|
D |
28 |
35 |
42 |
50 |
60 |
72 |
||
|
S |
16 |
22 |
29 |
36 |
45 |
56 |
||
|
材質：鑄鐵合金、韌鐵 (表面處理：電鍍鋅、熱浸鋅、熱噴鋅) 、鋁合金
蓋板:錏板、SUS304、鑄鐵平蓋、鑄鐵牙蓋3/4”
|
525 |
605 |
700 |
1020 |
1500 |
1800 |
