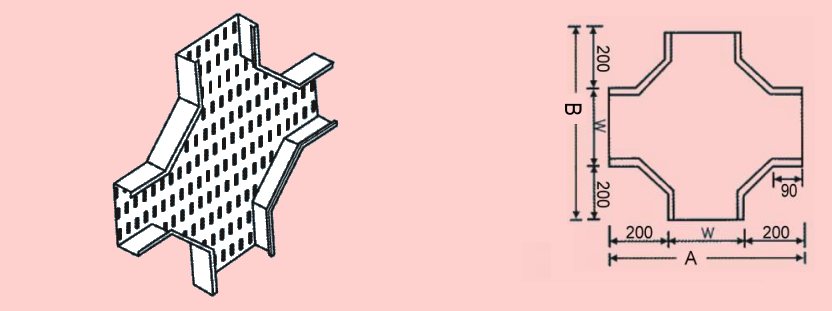

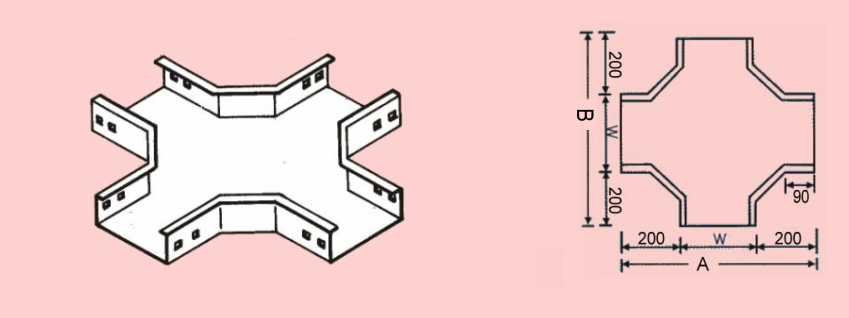

水平X型接头 - 电缆线槽
|
型 號 CAT.NO |
線槽寬度 W |
邊槽高度 H |
邊槽厚度 T |
彎曲半徑 R |
總 長 A |
總 寬 B |
|
SDB1HXPW |
100 |
60 80 100 120 125 127 132 150 200 |
1.2 1.6 2.0 2.5 3.0 |
200 |
500 |
500 |
|
SDB2HXPW |
200 |
600 |
600 |
|||
|
SDB3HXPW |
300 |
700 |
700 |
|||
|
SDB4HXPW |
400 |
800 |
800 |
|||
|
SDB5HXPW |
500 |
900 |
900 |
|||
|
SDB6HXPW |
600 |
1000 |
1000 |
|||
|
SDB7HXPW |
700 |
1100 |
1100 |
|||
|
SDB8HXPW |
800 |
1200 |
1200 |
|||
|
SDB9HXPW |
900 |
1300 |
1300 |
|||
|
SDB0HXPW |
1000 |
1400 |
1400 |
|
型 號 CAT.NO |
線槽寬度 W |
邊槽高度 H |
邊槽厚度 T |
彎曲半徑 R |
總 長 A |
總 寬 B |
|
SVB1HXPW |
100 |
60 80 100 120 125 127 132 150 200 |
1.2 1.6 2.0 2.5 3.0 |
200 |
500 |
500 |
|
SVB2HXPW |
200 |
600 |
600 |
|||
|
SVB3HXPW |
300 |
700 |
700 |
|||
|
SVB4HXPW |
400 |
800 |
800 |
|||
|
SVB5HXPW |
500 |
900 |
900 |
|||
|
SVB6HXPW |
600 |
1000 |
1000 |
|||
|
SVB7HXPW |
700 |
1100 |
1100 |
|||
|
SVB8HXPW |
800 |
1200 |
1200 |
|||
|
SVB9HXPW |
900 |
1300 |
1300 |
|||
|
SVB0HXPW |
1000 |
1400 |
1400 |
